AI-Powered Substation Scan-to-BIM: From 3D Point Clouds to Structured BIM Models
)
Accelerating Substation Scan-to-BIM with AI
Electrical substations are among the most complex environments to digitize. They contain dense arrangements of electrical equipment, steel structures, insulators, conductors, cables, and other components that must be accurately captured and interpreted to create reliable digital representations of existing infrastructure.
Traditional Scan-to-BIM workflows often require extensive manual interpretation of 3D laser scans. Identifying individual objects, separating overlapping structures, and converting point clouds into usable geometries can be time-consuming and difficult to scale across multiple substations.
Pointly addresses these challenges with AI-powered 3D point cloud classification and automated vectorization, helping engineering and infrastructure teams transform complex substation scans into structured digital information for downstream BIM workflows.
From Raw Point Clouds to BIM-Ready Data

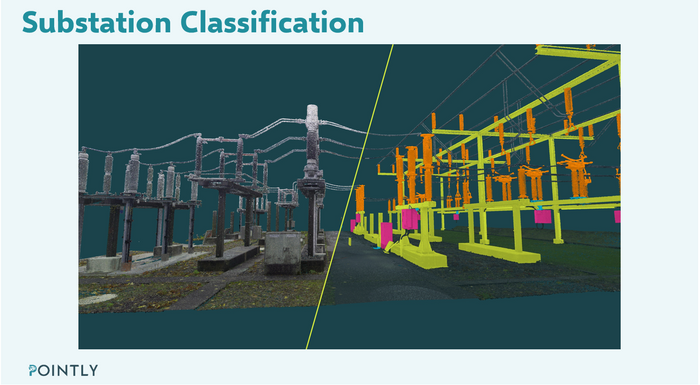

Pointly processes 3D point cloud data from laser scanning and other compatible acquisition methods, automatically identifying relevant objects and assigning them to predefined classes.
Depending on the project requirements and trained model, target objects can include:
Transformers and other major electrical equipment
Switchgear and associated infrastructure
Steel structures, support frames, and masts
Insulators and electrical components
Busbars and overhead conductors
Ground, buildings, and other structural elements
The classification model can be customized to the customer's object catalogue, data characteristics, and project requirements. This enables workflows to be adapted to different substation layouts, equipment types, scanning technologies, and levels of detail.
Automated Vectorization and Feature Extraction
Classification is an important first step, but Scan-to-BIM workflows often require more than assigning semantic labels to individual points.
Pointly combines classification with automated vectorization and feature extraction to convert relevant point cloud information into structured geometries and object representations.
Depending on the application, the workflow can support the extraction of 3D geometries, polylines, and other application-specific features. These outputs can provide a foundation for subsequent engineering, CAD, GIS, and BIM processes.
The precise output geometry, object attributes, and level of detail can be defined according to the downstream requirements. Full parametric BIM authoring and final Revit-family creation may require additional processing or integration with dedicated BIM software.
Custom AI Models for Complex Electrical Infrastructure
Every substation is different. Equipment configurations, construction standards, scan density, occlusions, and acquisition methods can vary considerably between sites.
A generic pretrained model may provide an initial result, but it may not reliably recognize every object in a new dataset. Pointly therefore offers a custom model training and optimization workflow for enterprise projects.
The process typically includes:
Requirements definition: Establish the target object classes, required geometries, attributes, and downstream BIM requirements.
Sample data assessment: Review representative substation scans to understand data quality, scene complexity, and object variability.
Custom model training: Adapt the AI model to the customer's class catalogue and target data.
Validation and refinement: Evaluate results, identify challenging objects, and improve model performance through iterative training.
Production workflow: Apply the optimized model to additional scans and deliver structured outputs for downstream processing.
This approach supports consistent processing across multiple sites while allowing the model to evolve as new equipment types or requirements emerge.
Key Benefits
Reduced manual effort: Automate repetitive classification and feature extraction tasks.
Scalable processing: Apply consistent workflows across multiple substation scans and large point cloud datasets.
Customer-specific classification: Tailor the AI model to project-specific electrical equipment and infrastructure classes.
Improved data consistency: Use standardized class catalogues and repeatable processing workflows.
Flexible integration: Export supported point cloud and vector formats for further use in engineering and geospatial applications.
Deployment flexibility: Use Pointly’s cloud platform or Pointly Box for local processing, including fully air-gapped environments where required.
Supporting the Digitalization of Electrical Infrastructure
Accurate digital representations of existing substations are valuable for asset management, engineering modifications, modernization projects, maintenance planning, and infrastructure lifecycle management.
By automating key stages of point cloud interpretation, Pointly helps organizations make Scan-to-BIM workflows more efficient and repeatable. The result is a practical foundation for turning complex 3D survey data into structured information that can be used throughout the infrastructure lifecycle.
Pointly — AI-powered classification and vectorization for complex 3D infrastructure data.
Learn more at https://pointly.ai.
