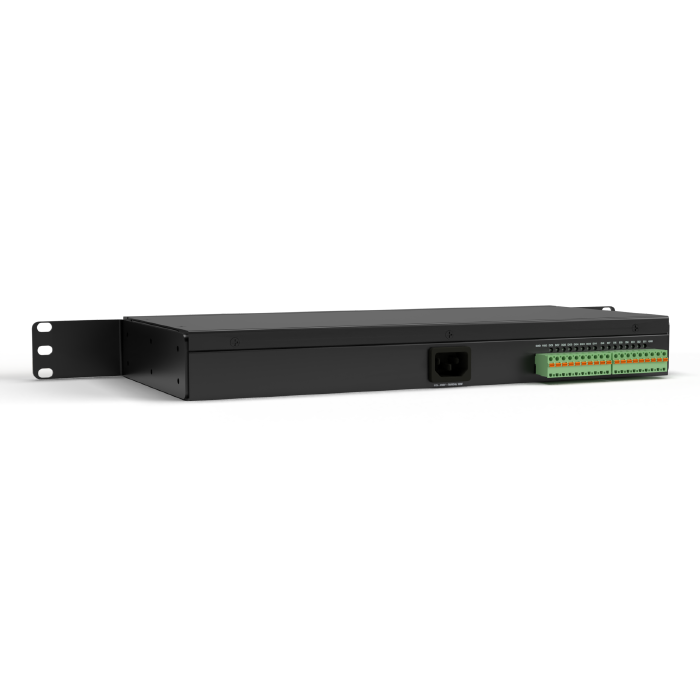

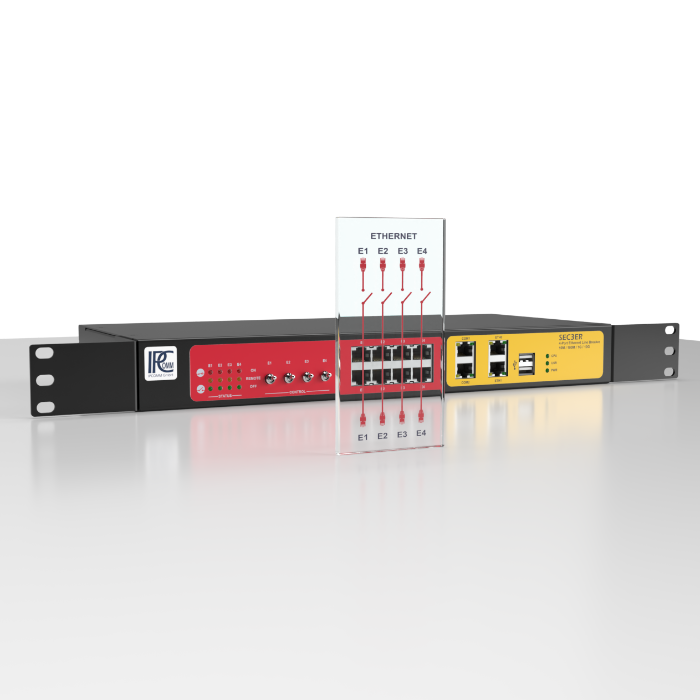

ipELB is a cybersecurity system for industrial networks that can physically disconnect Ethernet connections. It features relay-controlled 10 Gigabit Ethernet ports, each of which can be turned on and off via a toggle switch on the device as well as remotely. Remote control is based on standardized communication protocols.

To enable/disable the Ethernet ports, bistable relays that maintain their state even during power outages are used. Existing connections will not be affected accordingly.

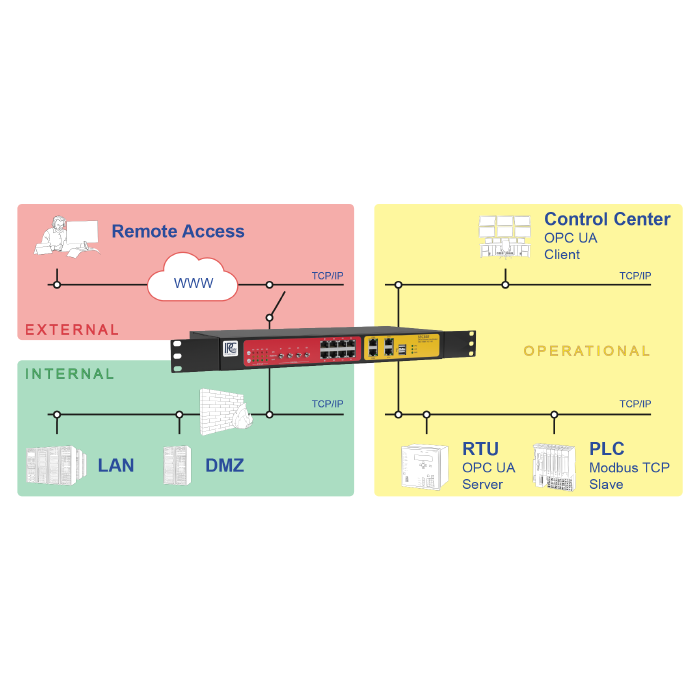

The applied SEC3ER hardware platform features a digital I/O module to control and capture digital states, and to physically disconnect up to four Ethernet port pairs. For this purpose, eight digital inputs and outputs are available, in addition to a variety of fieldbus protocols, telecontrol protocols, and established IT/cloud protocols, to monitor and control the connections of the 4-Port Ethernet Line Breaker.

The integrated web interface provides numerous configuration settings to automate the separable Ethernet connections. It includes powerful functions for data processing and provides a digital I/O interface that can be used to create complex switching scenarios.

Control Options for the Ethernet relays

• Manually via 3-way switches
• Using the web configuration interface
• Digital inputs
• Protocol-based automation
• Timer-controllable

Features

• Support for 10M / 100M / 1G and 10G Ethernet
• Transparent data transmission
• Controlled bidirectional data exchange between systems
• Network segmentation
• Daisy chain of multiple
• Conduct-through Power over Ethernet (PoE)

For more information visit:
https://www.ipcomm.de/product/ipELB/en/sheet.html
