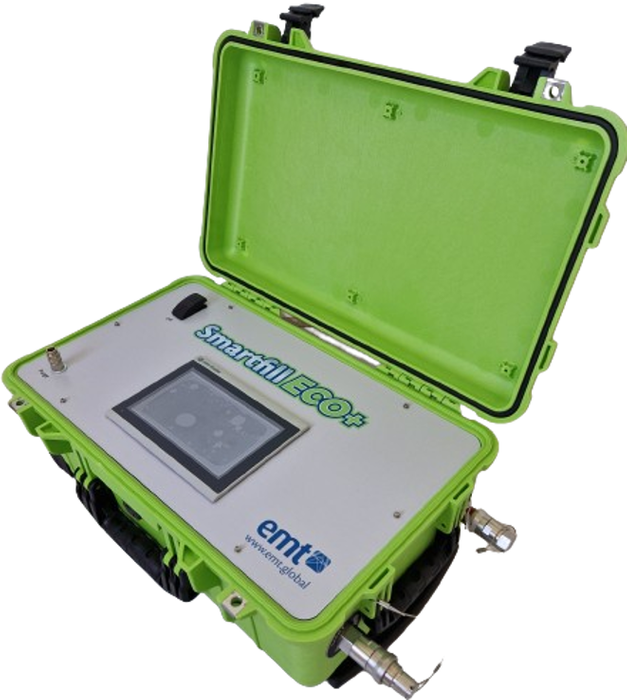

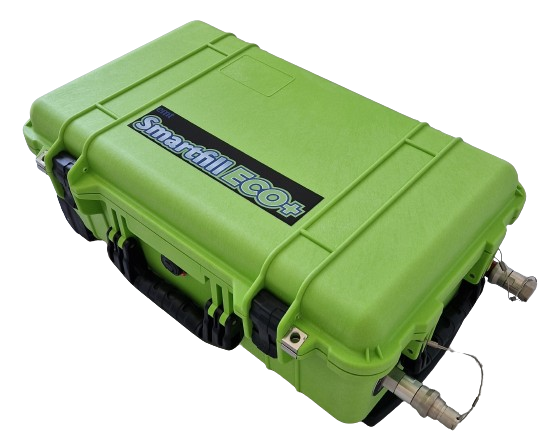

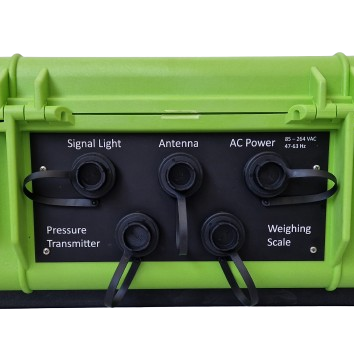

Smartfill Eco+ 3in1 Multi-Gas Filling & Top-Up System

Single Top-Up (STU) mode provides safe, repeatable auditable fills or top-ups of SF6, CO2 or Dry Air systems without the need for gas carts or weighing scales. Simply type in the target pressure and press “Start”. Smartfill Eco+ fills the system and provides a report to include date, time and quantity of gas delivered.

Leak management and continuous top up mode

When critical assets leak, down time and costs associated with multiple site visits and top-ups can be significant. Leak Management and Continuous Top-Up (CTU) mode solves this issue. Monitoring your asset pressure 24/7/365, Smartfill Eco+ delivers gas to the system as required, automatically in small doses, ensuring 100% up time and reduced insulating gas leakage rates. Every top-up is recorded providing a traceable report of gas used once the asset is repaired.

SmartDose dry air leak detection mode

Finding leaks in Dry Air assets is an industry wide issue. Using EMT SmartDose technology via the Eco+ combined with the EMT Leak Hunter Pro, allows for detection of Dry Air leaks as low as 6×10-4 mbar l/s without de-energising the asset.
